Adapt Harness. Datalogger for RacePRO-1Fi

• Description

• Harness for connecting a Datalogger to RacePRO-1Fi.

Description

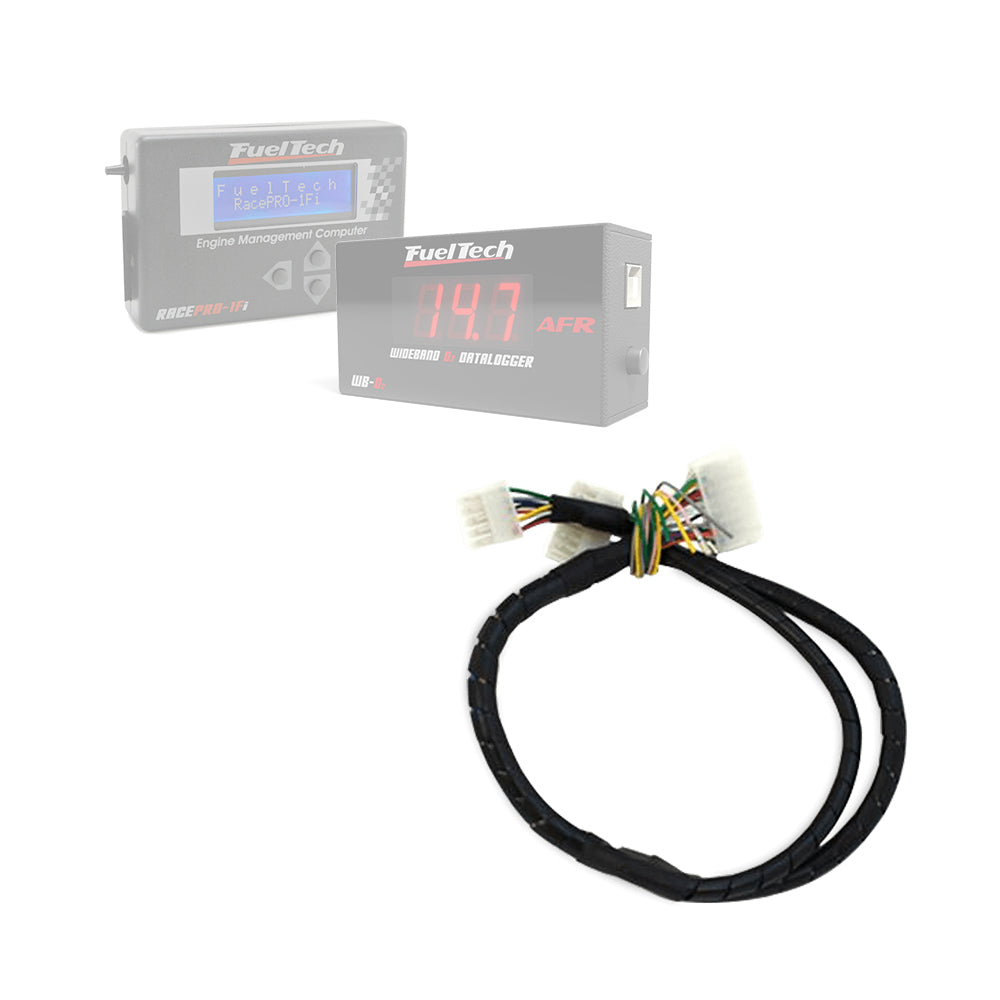

Adapt Harness. Datalogger RacePRO-1Fi (Fonic Wheel)

• Compatible only with engines equipped with a phonic wheel (FirePRO or Fire4S).
• It is a “Y” harness ready to be connected to any installation.
• It has two male connectors (RacePRO-1Fi and Datalogger) and one female.
• Connect the female connector to the RacePRO-1Fi installation that is already in the car.
• The male connectors must be connected to the RacePRO-1Fi and the WB-O2 Datalogger.

The Datalogger channels are connected as follows:
> Channel 1: Lambda
> Channel 2 – Gray: It is free, it must be connected to the FirePRO or Fire4S rev counter signal output
> Channel 3 – White: Fuel Pressure
> Channel 4 – Orange: TPS
> Channel 5 – Blue: Oil Pressure
> Channel 6 – Pink: It is loose, it is normally connected to the RacePRO-1Fi MAP sensor signal output
