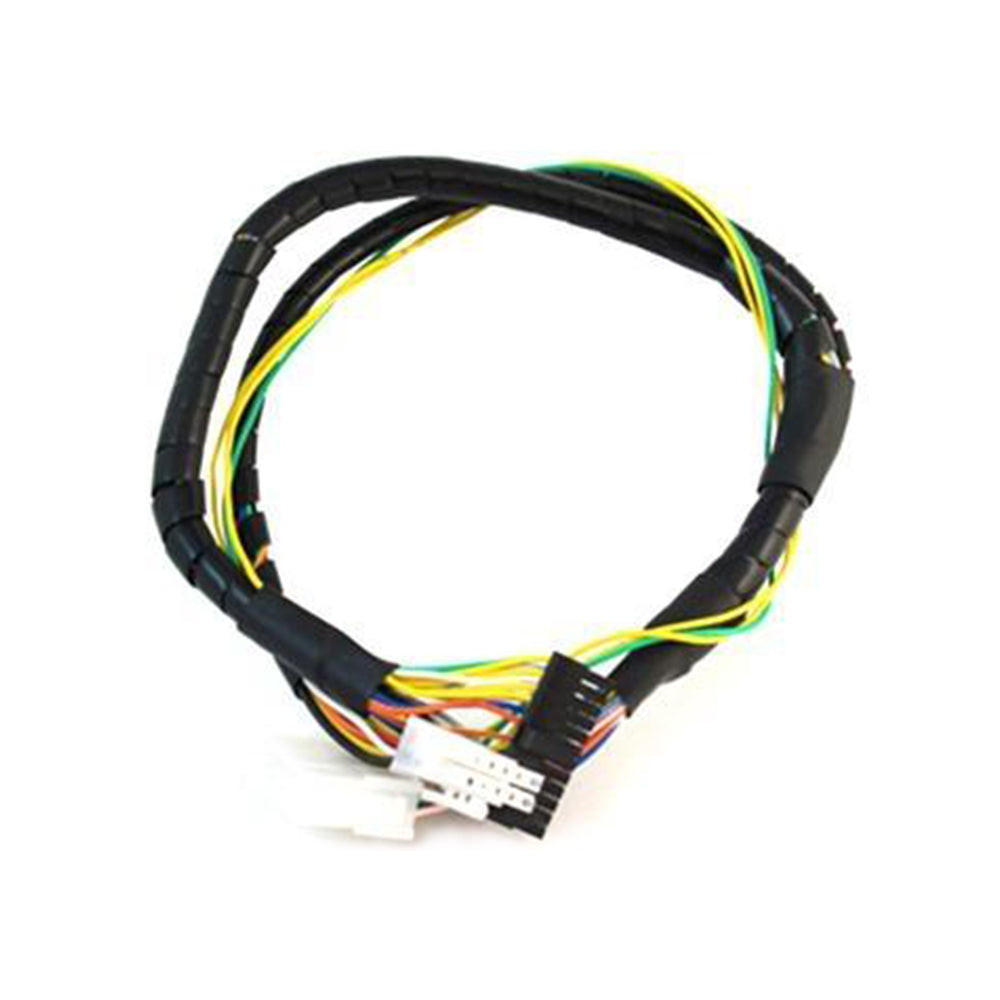

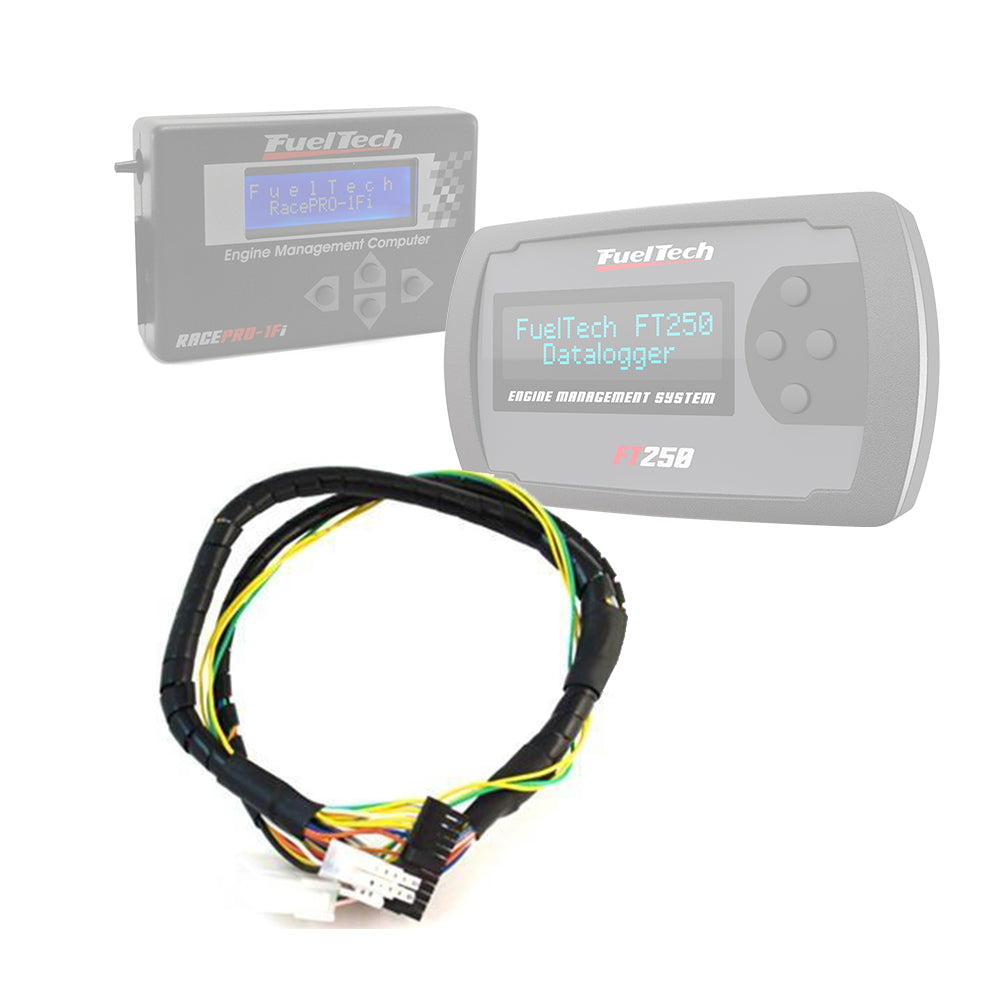

RacePro Adapter Harness (Hall Distributor) for FT250/DL

Harness for converting a RacePRO-1Fi installation to FT250 or FT300 (exclusively with Hall Distributor)

- It is a “Y” adapter harness that allows you to “convert” an installation of a RacePRO-1Fi module (installation with Hall distributor) into an installation for FT250 or FT300 (exclusively with Hall Distributor) , already with output for WB-O2 Datalogger .
- It has two male connectors (FT and Datalogger) and one female.
- Connect the female connector to the installation already in the car.
- The FT male connector must be connected to the FT250/FT300
- The Datalogger male connector is used with the WB-O2 Datalogger.
- The Datalogger channels are connected as follows:
Channel 1: Lambda
Channel 2 – Gray: Rotation
Channel 3 – White: Fuel Pressure
Channel 4 – Orange: TPS
Channel 5 – Blue: Oil Pressure
Channel 6 – Pink: FT MAP Sensor
